Climbing

Types of Climbing Formwork

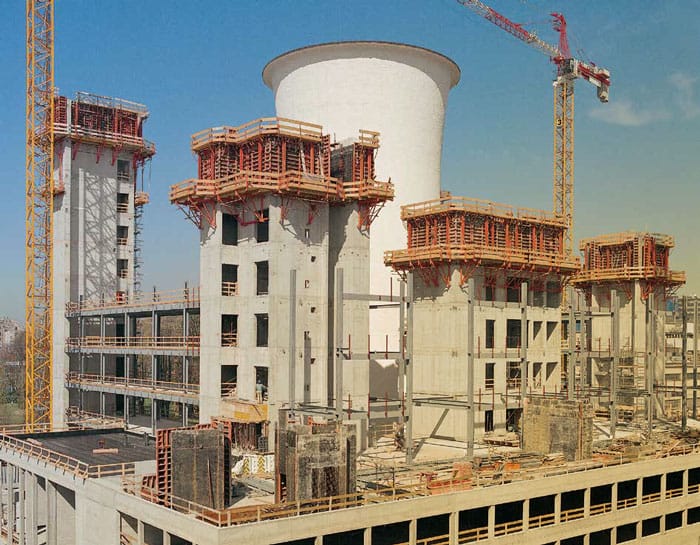

Climbing formwork systems are essential in constructing tall vertical concrete structures, offering efficiency and safety. These systems can be categorized based on their climbing mechanisms and applications:

1. Crane-Dependent Climbing Formwork

This traditional method relies on cranes to lift the formwork to successive levels. It’s commonly used in constructing non-slab walls, dams, and cooling towers. The process involves detaching the formwork after the concrete sets and repositioning it for the next pour. While effective, it depends heavily on crane availability and favorable weather conditions.

2. Self-Climbing Formwork

Also known as automatic climbing formwork, this system uses hydraulic jacks or mechanical devices to elevate the formwork without crane assistance. It’s ideal for high-rise structures like skyscrapers, bridge pylons, and silos. The self-climbing mechanism allows construction to proceed in various weather conditions, enhancing safety and reducing reliance on cranes.

3. Single-Sided Climbing Formwork

Designed for structures where formwork cannot be anchored on both sides, such as dams and retaining walls. This system transfers the concrete pressure through braces and wall struts to the previously cast section, eliminating the need for opposing formwork.

4. Gliding Formwork

Similar to self-climbing systems, gliding formwork moves continuously, allowing for uninterrupted concrete pouring. This method is suitable for seamless structures but requires meticulous planning to ensure stability and quality during the continuous pour.

5. Climbing Formwork with Carriage

In this system, the formwork and its support move together using a crane, facilitating assembly and disassembly in large-scale projects. It’s particularly suitable for high-rise buildings with repetitive structures, enabling efficient and rapid construction cycles.

Selecting the appropriate climbing formwork system depends on project-specific factors such as structure design, height, site conditions, and available equipment. Consulting with formwork specialists can ensure the chosen system aligns with project requirements, optimizing both safety and efficiency.

How Climbing Formworks Work

Climbing formwork systems are engineered to facilitate the efficient construction of vertical concrete structures by allowing the formwork to ascend alongside the building process. This method ensures continuous and safe construction of tall structures, such as skyscrapers, dams, and cooling towers.

Key Components of Climbing Formworks

The primary components of climbing formwork systems include:

• Formwork Panels: These panels shape the concrete into the desired structure.
• Climbing Brackets: Attached to preset anchors in the previously cast concrete, climbing brackets support the formwork and provide a platform for workers.
• Hydraulic Systems: In self-climbing formwork, hydraulic rams elevate the formwork to the next level without crane assistance.
• Anchoring Systems: These systems secure the formwork to the structure, ensuring stability during the climbing process.

The Step-by-Step Process of Climbing Formwork Systems

1. Initial Setup: The formwork is assembled at the base of the structure, and climbing brackets are attached to preset anchors in the previously cast concrete.
2. Concrete Pouring: Fresh concrete is poured into the formwork panels, which are supported by the climbing brackets.
3. Climbing Process:

• Crane-Dependent Systems: Once the concrete has gained sufficient strength, cranes lift the formwork to the next level.
• Self-Climbing Systems: Hydraulic rams elevate the formwork to the next level without crane assistance.

1. Repetition: The process repeats for each level of the structure, allowing for continuous construction.

This systematic approach enables the efficient and safe construction of vertical concrete structures, reducing labor costs and construction time.

Advantages of Climbing Formworks

Climbing formwork systems offer numerous benefits that enhance the efficiency, safety, and cost-effectiveness of constructing vertical concrete structures.

Increased Safety in High-Rise Construction

Climbing formworks provide integrated working platforms and safety barriers, significantly reducing the risk of falls and accidents during construction. This built-in safety feature is particularly crucial in high-rise projects where working at elevated heights poses inherent dangers.

Efficiency and Speed in Construction

By allowing formwork to ascend with the building process, climbing formworks enable continuous construction without the need for external scaffolding or crane operations for repositioning. This streamlined workflow accelerates project timelines and enhances productivity.

Cost-Effectiveness Compared to Traditional Formwork

While the initial investment in climbing formwork systems may be higher, their reusability and reduced labor requirements lead to significant cost savings throughout a project. The ability to use the same formwork for multiple levels and projects makes it a cost-effective solution in the long term.

Perimeter Protection and High Precision

Modern climbing formwork systems often include perimeter protection, enhancing worker safety, and providing a secure working environment. Additionally, these systems offer high precision in formwork alignment, ensuring the structural integrity and aesthetic quality of the concrete walls.

Adaptability to Complex Designs

Climbing formworks can be customized to accommodate complex wall dimensions and various structural shapes, making them suitable for a wide range of construction projects, including those with inclined, stepped, circular, or straight faces.

In summary, climbing formwork systems provide a comprehensive solution that enhances safety, efficiency, cost-effectiveness, and adaptability in the construction of vertical concrete structures.

Applications of Climbing Formworks

Climbing formwork systems are integral to the construction of various vertical concrete structures, offering efficiency and safety across multiple applications.

Skyscrapers and High-Rise Buildings

In the construction of skyscrapers and high-rise buildings, climbing formwork is essential for forming elevator shafts, stairwells, and structural cores. Its ability to move upward with the building process allows for continuous construction, reducing the need for external scaffolding and enhancing safety.

Bridge Pylons and Towers

Climbing formwork is widely used in the construction of bridge pylons and towers, where precise and efficient vertical construction is crucial. The system’s adaptability to various shapes and sizes makes it ideal for these structures, ensuring structural integrity and reducing construction time.

Industrial Chimneys and Silos

The construction of industrial chimneys and silos benefits from climbing formwork due to its ability to handle repetitive vertical elements and complex geometries. The system’s efficiency in forming cylindrical structures ensures consistent quality and accelerates the construction process.

Dams and Sluices

In dam and sluice construction, climbing formwork is utilized to form large, vertical concrete walls. Its capacity to handle substantial concrete pressures and its adaptability to various wall dimensions make it suitable for these massive structures.

Elevator Shafts and Energy Buildings

Climbing formwork is ideal for constructing elevator shafts and energy buildings, where precision and speed are essential. The system’s ability to form complex vertical structures efficiently makes it a preferred choice for these applications.

In summary, climbing formwork systems are versatile tools in modern construction, offering solutions for a wide range of vertical structures. Their efficiency, adaptability, and safety features make them indispensable in the construction of skyscrapers, bridges, industrial facilities, and more.

Challenges and Considerations

While climbing formwork systems offer numerous advantages, several challenges and considerations must be addressed to ensure their effective implementation in construction projects.

Structural Stability and Load Bearing

Ensuring the structural stability of climbing formwork is paramount. The formwork must be designed to withstand the weight of the concrete, environmental loads, and dynamic forces during the climbing process. Inadequate load-bearing capacity can lead to formwork failure, compromising the safety of the construction site.

Weather Conditions and External Factors

Adverse weather conditions, such as high winds, heavy rainfall, or extreme temperatures, can impact the performance of climbing formwork systems. These conditions may affect the curing of concrete, the operation of hydraulic systems in self-climbing formworks, and the safety of workers. Implementing weather-resistant materials and monitoring weather forecasts are essential to mitigate these risks.

Cost and Initial Setup Requirements

The initial investment for climbing formwork systems can be substantial due to the complexity and materials involved. Additionally, the setup process requires skilled labor and precise planning. However, the long-term benefits, such as reduced labor costs and increased construction speed, often offset these initial expenses.

Customization for Complex Designs

While climbing formwork systems are adaptable, projects with complex wall dimensions or unique architectural features may require customized solutions. This customization can increase design and manufacturing time, as well as costs. Collaborating with experienced formwork providers can help develop tailored solutions that meet specific project requirements.

Addressing these challenges through careful planning, design, and collaboration with experienced professionals is crucial to maximizing the benefits of climbing formwork systems in construction projects.

Latest Innovations in Climbing Formworks

Advancements in climbing formwork technology have significantly enhanced the efficiency, safety, and versatility of vertical construction. Recent innovations focus on automation, sustainability, and adaptability to complex designs.

Smart Automation and Digital Control

The integration of digital technologies, such as Building Information Modeling (BIM) and automated robotic systems, has revolutionized climbing formwork operations. BIM enables precise planning and simulation of formwork systems before construction begins, reducing errors and inefficiencies. Automated robots are being developed to assemble and dismantle formwork, promising future enhancements in safety and productivity.

Sustainable and Eco-Friendly Materials

Sustainability concerns are driving the development of eco-friendly formwork materials. Innovations include the use of recycled plastics and biodegradable materials that offer an environmentally responsible alternative to traditional formwork without compromising on performance. These materials aim to reduce the construction industry’s environmental impact by minimizing waste and promoting recyclability.

Future Trends in Climbing Formwork Technology

The future of climbing formwork technology is poised to embrace further automation, with the potential for fully autonomous systems that require minimal human intervention. Additionally, the use of advanced materials and sustainable practices is expected to increase, aligning with the construction industry’s shift towards environmental responsibility. These trends aim to enhance efficiency, reduce costs, and minimize environmental impact in vertical construction projects.

In summary, the latest innovations in climbing formwork technology are transforming the construction industry by integrating smart automation, sustainable materials, and advanced design adaptability. These developments promise to improve the efficiency, safety, and environmental footprint of vertical construction projects.

Conclusion

Climbing formwork systems have revolutionized vertical construction, offering enhanced efficiency, safety, and adaptability. Their integration into modern building projects has streamlined processes and improved structural integrity.

The Role of Climbing Formworks in the Future of Construction

As the construction industry evolves, climbing formwork systems are expected to play a pivotal role in shaping future projects. Advancements in automation, sustainable materials, and digital technologies are anticipated to further enhance their capabilities. For instance, the integration of Building Information Modeling (BIM) allows for precise planning and simulation, reducing errors and improving coordination.

Key Takeaways for Engineers and Builders

For engineers and builders, staying abreast of these innovations is crucial. Embracing climbing formwork systems can lead to more efficient construction processes, reduced labor costs, and improved safety standards. Additionally, adopting sustainable practices and digital tools can contribute to environmental responsibility and project success.

In summary, climbing formwork systems are integral to the future of construction, offering solutions that enhance efficiency, safety, and sustainability. Their continued evolution promises to meet the growing demands of modern infrastructure development.
