Flange Connections

Importance of Flanges in Piping and Structural Systems

In piping systems, flange connections facilitate the assembly and disassembly of components, enabling maintenance and modifications without cutting or welding pipes. In structural applications, flanges provide strong, bolted connections for beams, columns, and other steel members. Their versatility and strength make flange connections indispensable for maintaining operational efficiency and safety in demanding industrial environments.

Types of Flange Connections

Flange connections come in various designs, each tailored to specific applications and operational requirements. Understanding the types of flanges is essential for selecting the right solution for your project.

Weld Neck, Slip-On, Blind, Socket Weld, and Lap Joint Flanges

• Weld Neck Flange: Known for its strength, the welding neck flange is welded directly to the pipe, making it ideal for high-pressure applications like oil and gas pipelines.
• Slip-On Flange: This flange slides over the pipe and is welded in place, offering a cost-effective solution for low-pressure systems.
• Blind Flange: Used to seal the end of a pipe or vessel, blind flanges are critical for pressure testing and system isolation.
• Socket Weld Flange: Designed for small-diameter, high-pressure pipes, this flange is welded with a single fillet weld.
• Lap Joint Flange: Paired with a stub end, this flange allows for easy alignment and is commonly used in systems requiring frequent disassembly.

Bolted vs Welded Flange Connections

Bolted flange connections use bolts and nuts to secure two flanges with a gasket in between, offering ease of assembly and disassembly. In contrast, welded flange connections, such as those using weld neck or socket weld flanges, provide a permanent, high-strength joint suitable for extreme conditions. The choice between bolted and welded connections depends on the application’s pressure, temperature, and maintenance requirements.

Key Components of a Flange Assembly

A flange connection is more than just the flange itself—it’s a system of components working together to ensure a secure, leak-free joint.

Gaskets, Bolts, and Nuts in Flange Sealing

The flange gasket sealing process relies on a gasket placed between the flange faces to prevent leaks. Gaskets are typically made from materials like rubber, graphite, or PTFE, chosen based on the system’s fluid, temperature, and pressure. Bolts and nuts provide the clamping force needed to compress the gasket and maintain a tight seal. Proper torque application during the flange assembly process is critical to avoid leaks or component damage.

Materials and Coatings Used in Flange Components

Flanges are manufactured from materials like carbon steel, stainless steel, or alloys to suit specific environments. For corrosive settings, such as chemical plants, coatings like zinc or epoxy enhance durability. Bolts and nuts are often made from high-strength steel, with coatings to resist corrosion, ensuring long-term performance in high-pressure flanges.

Applications of Flange Connections

Flange connections are integral to a wide range of industries, delivering reliable performance in demanding conditions.

Oil & Gas, Chemical, and Water Treatment Industries

In the oil and gas sector, flange connections are used in pipelines, refineries, and offshore platforms to handle high-pressure fluids. Chemical plants rely on pipe flange joints to transport corrosive substances safely. In water treatment facilities, flanges connect pipes and equipment to ensure clean water delivery and waste management.

Flanges in Steel Structures and Mechanical Systems

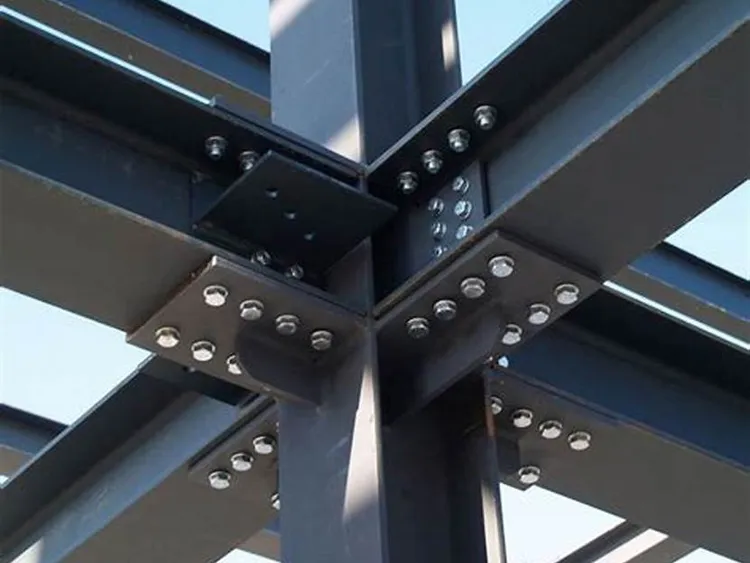

Beyond piping, flange connections are vital in structural steel frameworks, such as bridges and buildings, where bolted flanges join beams and columns. In mechanical systems, flanges connect rotating equipment like pumps and compressors, ensuring alignment and operational efficiency.

Advantages of Flange Connections

Flange connections offer several benefits that make them a preferred choice in industrial applications.

Easy Assembly, Disassembly, and Maintenance

The bolted flange connection design allows for quick assembly and disassembly, simplifying maintenance and repairs. This is particularly valuable in systems requiring frequent inspections or component replacements, reducing downtime and costs.

Strong Pressure Handling and Leak Prevention

Flange connections excel in high-pressure flanges applications, providing robust sealing through proper gasket selection and torque control. Their ability to prevent leaks ensures safety and environmental compliance in critical systems.

Challenges in Flange Connection Installation

While flange connections are reliable, their installation requires precision to avoid issues that could compromise performance.

Alignment, Torque Control, and Gasket Selection

Flange alignment is crucial to prevent uneven stress on bolts and gaskets, which can lead to leaks. Incorrect torque application during the flange assembly process can cause gasket failure or bolt loosening. Selecting the right gasket material for the system’s temperature, pressure, and fluid is equally important to ensure a secure seal.

Common Failures and How to Avoid Them

Common issues include gasket blowouts, bolt fatigue, and flange face corrosion. These can be mitigated by adhering to proper installation procedures, using high-quality materials, and conducting regular inspections. Training technicians in flange assembly processes and torque control is essential to minimize risks.

Industry Standards and Specifications

Flange connections must comply with rigorous standards to ensure safety and performance.

ASME, DIN, and ANSI Flange Standards

ASME flange standards, such as ASME B16.5, define dimensions, pressure ratings, and materials for flanges used in piping systems. DIN and ANSI standards provide similar guidelines, ensuring compatibility and reliability across global projects. Compliance with these standards is critical for quality assurance.

Flange Testing, Inspection, and Certifications

Flanges undergo pressure testing, visual inspections, and material certifications to verify their integrity. Non-destructive testing methods, such as ultrasonic or radiographic testing, detect defects in welds or materials, ensuring compliance with industry standards.

Flange Connection vs Other Pipe Joining Methods

Flange connections are one of several pipe joining methods, each with unique advantages and limitations.

Comparison with Threaded, Welded, and Grooved Joints

Threaded joints are simpler but less reliable under high pressure compared to flange connections. Welded joints offer permanence but lack the flexibility of bolted flange connections. Grooved joints are quick to install but may not handle extreme pressures as effectively as flanges.

Cost, Reliability, and Long-Term Performance

While flange connections may have higher initial costs due to materials and installation, their reliability and ease of maintenance make them cost-effective over time. Their ability to handle high-pressure and high-temperature conditions ensures long-term performance in critical applications.

Conclusion: Why Flange Connections Are Essential in Industrial Systems

Flange connections are a vital component in industrial piping, structural, and mechanical systems, offering unmatched reliability, flexibility, and strength. From high-pressure flanges in oil and gas pipelines to bolted flange connections in steel structures, their versatility makes them indispensable. By adhering to ASME flange standards, ensuring proper flange alignment, and selecting the right materials, engineers and contractors can maximize the performance of flange connections. At bfs Industrial Group, we are committed to providing high-quality flange solutions tailored to your project’s needs, ensuring safety, efficiency, and durability in every application.
