Special Formworks in Concrete Construction

The Role of Custom Forming in Modern Architecture

In contemporary architecture, the demand for unique and aesthetically pleasing structures has surged. Custom forming allows architects and engineers to explore innovative designs that were previously unfeasible with traditional formwork. By leveraging special formworks, construction professionals can achieve complex geometries, optimize structural integrity, and enhance the visual appeal of buildings. This is especially important for landmark structures, high-rise buildings, and infrastructure projects where standard solutions fall short. Custom formworks bridge the gap between design ambition and construction reality, making them indispensable in modern construction.

Types of Special Formwork Systems

Special formwork systems come in various types, each designed to meet specific construction needs. Below are some of the most prominent types used in modern concrete construction:

Tunnel Formwork, Freeform Systems, and Curved Panels

• Tunnel Formwork: This system allows for the simultaneous casting of walls and slabs in a single operation, making it ideal for repetitive cellular structures such as residential blocks, hotels, and student accommodations. Tunnel formwork results in high-quality, smooth finishes with minimal need for additional finishing work, streamlining the construction process. It combines the speed and accuracy of factory production with the flexibility of in-situ construction, making it highly efficient for projects requiring rapid completion.
• Freeform Systems: These are customized formworks designed for complex, multi-curved reinforced concrete components. Based on 3D building models with freeform surfaces, they are precisely manufactured to create intricate shapes that standard formworks cannot accommodate. Freeform systems are particularly useful for artistic or architectural elements requiring unique geometries, such as sculptural facades or organic structures.

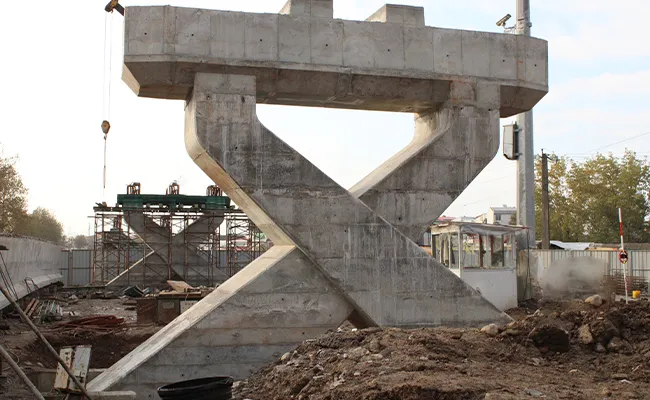

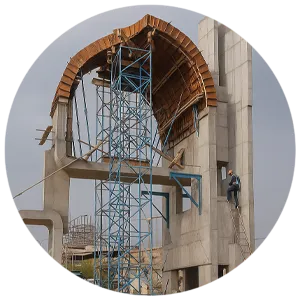

• Curved Panels: Used for structures with curved walls, arches, or domes, curved formworks are often made from materials like fiberglass or steel to maintain their shape under concrete pressure. These systems are essential for projects where aesthetic appeal and structural integrity are paramount, such as in architectural concrete formwork for iconic buildings.

CNC-Cut and 3D Forming Solutions

• CNC-Cut Formwork: Utilizing computer numerical control (CNC) technology, this formwork is precisely cut to create complex shapes with high accuracy. CNC-cut formworks are particularly useful for projects requiring detailed and repetitive elements, such as decorative shaping or large-scale infrastructure components. For example, CNC-machined polystyrene foam or form-ply assemblies can create intricate voids or patterns in concrete, offering unmatched precision and efficiency.
• 3D Forming Solutions: This category includes 3D-printed formworks and other digital fabrication methods that allow for the creation of highly customized molds from digital designs. These solutions minimize material waste, maximize precision, and enable the production of highly intricate forms that traditional methods cannot achieve. Innovations like 3D-printed formwork are revolutionizing the industry by offering sustainable and cost-effective alternatives for complex projects.

Materials Used in Special Formwork Design

The choice of materials for special formworks is critical, as it directly impacts the system’s performance, reusability, and cost-effectiveness. Common materials include:

Steel, Fiberglass, Timber, and Composite Materials

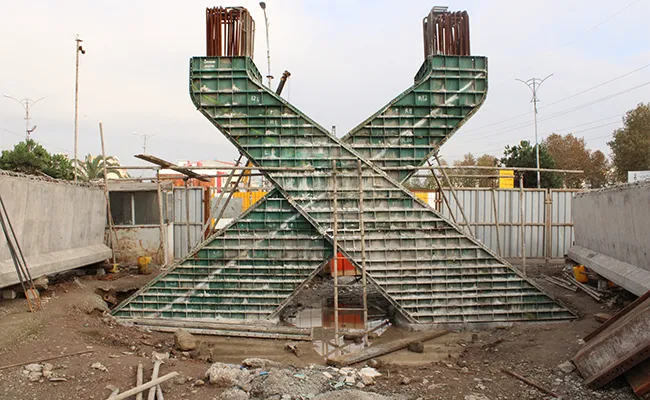

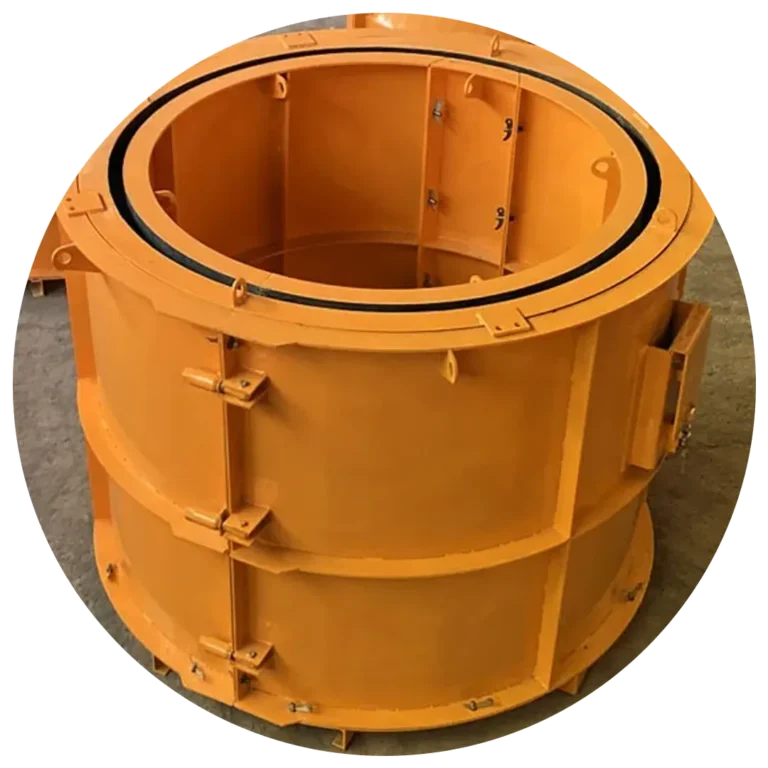

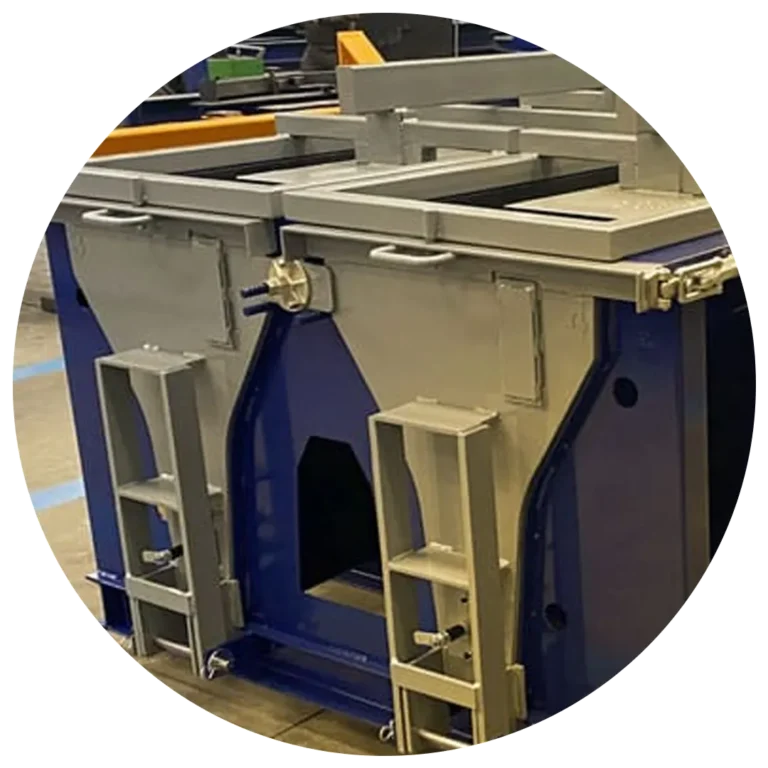

• Steel: Known for its strength, durability, and reusability, steel formworks are ideal for large-scale projects. They provide a smooth finish and are resistant to moisture, making them suitable for demanding applications like tunnel formwork or high-rise construction. Steel formworks can be reused hundreds of times, offering long-term cost savings
• Fiberglass: Lightweight and flexible, fiberglass formworks are perfect for curved formwork and complex shapes. They are corrosion-resistant and can be easily molded to fit specific designs, making them ideal for architectural concrete formwork.
• Timber: A traditional and cost-effective option, timber formworks are used for smaller projects or when a high degree of customization is required. However, timber has a shorter lifespan compared to steel or fiberglass and may require more maintenance, especially in humid conditions
• Composite Materials: Materials like polystyrene foam, often CNC-cut for precision, are used as lost formwork or void formers. These composites are lightweight, easy to handle, and can be shaped into complex forms with ease, making them ideal for decorative shaping or intricate infrastructure components.

Reusability and Precision in Complex Molds

Reusability is a key consideration in special formwork design, as it can significantly reduce construction costs. Steel and fiberglass formworks, for instance, can be reused multiple times, making them cost-effective for large projects. Precision in complex molds is achieved through advanced manufacturing techniques like CNC cutting and 3D printing, ensuring that the formwork meets the exact specifications of the project. These technologies allow for the creation of reusable special molds that maintain their integrity even after multiple uses.

Benefits of Using Special Formworks in Projects

Special formworks offer numerous advantages over traditional systems, making them a preferred choice for complex construction projects:

Enhanced Design Freedom and Structural Performance

• Enhanced Design Freedom: Special formworks allow architects and engineers to create unique architectural features that are not possible with standard formworks. This flexibility enables the realization of innovative designs that stand out, such as organic shapes or intricate facades.
• Improved Structural Performance: By optimizing concrete placement, special formworks can enhance the strength and durability of structures. This is particularly important for high-rise buildings and infrastructure projects where structural integrity is critical.

Reduced Finishing Work and Better Surface Quality

• Reduced Finishing Work: High-quality formworks produce smooth, precise surfaces that require minimal additional finishing. This saves time and labor, reducing overall project costs.
• Better Surface Quality: Materials like steel and fiberglass ensure a superior finish, enhancing the aesthetic appeal of the structure. This is especially valuable for projects where visual quality is a key consideration, such as architectural concrete formwork for landmark buildings.

Application Areas of Special Formworks

Special formworks are used across a wide range of construction projects, including:

• High-Rise Architecture: For creating complex facades, internal structures, and unique design elements in tall buildings, where precision and aesthetics are paramount.
• Landmark Structures: In iconic buildings where architectural creativity and structural innovation are essential, such as museums or cultural centers.
• Infrastructure: For tunnels, bridges, and curved walls where standard formworks are insufficient. Tunnel formwork, for example, is widely used in infrastructure projects for its efficiency and quality.
• Decorative Concrete Elements: In projects requiring artistic or ornamental concrete work, such as landscaping or urban development, where CNC-cut panels and 3D forming solutions excel.

Challenges in Designing and Installing Special Formwork

While special formworks offer significant benefits, they also present several challenges:

Precision, Alignment, and Cost Considerations

• Precision and Alignment: Ensuring accurate positioning and alignment is critical, especially for complex shapes. Any misalignment can lead to structural or aesthetic issues, requiring careful planning and skilled labor.
• Cost Considerations: Special formworks can be more expensive than traditional systems due to their custom nature and the use of advanced materials and technologies like CNC-cut panels or 3D forming solutions. However, their reusability and reduced finishing work can offset these costs over time.

Transportation and On-Site Assembly

• Transportation and On-Site Assembly: Large or complex formworks may require careful planning for transportation and assembly, which can be time-consuming and labor-intensive. For instance, prefabricated tunnel formwork units need precise logistics to ensure safe delivery and setup.

Special Formworks vs Traditional Systems

Comparing special formworks with traditional systems highlights their unique strengths and limitations:

Customization, Complexity, and Cost Comparison

• Customization: Special formworks offer high customization, allowing for unique designs, while traditional systems are limited to standard shapes like slabs or columns.
• Complexity: Special formworks can handle complex geometries and non-standard shapes, whereas traditional systems are better suited for straightforward, repetitive designs .
• Cost: Special formworks are generally more expensive upfront but can offer long-term savings through reusability and reduced finishing work. Traditional systems are often more cost-effective for simple projects.

Flexibility and Reuse Potential in Both Systems

• Flexibility and Reuse: Both systems can be reusable, but special formworks may have project-specific components that are less reusable across different projects. Flexible modular shuttering in special formworks, however, allows for some adaptability, while traditional systems like timber formworks are highly flexible but less durable.

Conclusion: The Future of Formwork Lies in Customization and Technology

The future of formwork in concrete construction is undoubtedly moving towards greater customization and the integration of advanced technologies. With innovations like 3D printing, CNC machining, and digital fabrication, special formworks will continue to evolve, enabling even more complex and sustainable designs. These advancements allow for precise, efficient, and eco-friendly construction processes, reducing material waste and improving project outcomes. As construction professionals embrace these technologies, the possibilities for architectural expression and structural efficiency will expand, shaping the built environment in new and exciting ways. Special formworks are not just a tool for today’s construction challenges; they are a gateway to the future of building design and engineering.
