Understanding Types of Column Formwork in Modern Construction

The structural integrity and visual aesthetics of any reinforced concrete structure are fundamentally dependent on the quality and performance of its temporary molds, known as formwork. Specifically, the column, as the primary vertical load-bearing element, demands highly precise and robust column formwork systems to withstand the immense hydrostatic pressure of wet concrete, maintain dimensional accuracy, and deliver the desired surface finish. This technical overview is intended for engineers and construction professionals seeking a comprehensive guide to the various types of column formwork available today. Choosing the appropriate shuttering system—whether traditional, modular, or specialized—is a critical decision that directly impacts project speed, safety, cost efficiency, and overall quality control in civil engineering projects. We will dissect the most common materials, design methodologies, and practical applications of these essential temporary structures, ensuring readers gain the insights necessary to optimize their concrete construction strategies.

What Is Column Formwork and Why Is It Important?

Column formwork is a critical temporary structure used to contain freshly placed liquid concrete until it cures and develops sufficient strength to be self-supporting, resulting in the desired vertical structural element. This temporary casing must be engineered to resist both lateral pressure and deformation, ensuring the resulting column maintains its specified cross-sectional dimensions, plumbness, and orientation. The importance of column formwork transcends mere shaping; it acts as a quality control mechanism, directly influencing the durability, fire resistance, and long-term performance of the structure. High-quality formwork minimizes defects like honeycombing, spalling, and alignment errors, reducing the need for costly rework and ensuring compliance with stringent building codes. Effective Concrete Column Formwork is thus a non-negotiable prerequisite for constructing reliable high-rise buildings, bridges, and industrial facilities, demanding careful consideration of its design, material composition, and erection process.

The selection of appropriate column formwork systems is intrinsically linked to project economics and scheduling. While formwork itself can account for a significant portion of the total structural cost (often between 30% and 60%), selecting reusable or highly efficient systems can dramatically reduce the overall time and material expense across repetitive construction cycles. Furthermore, modern advancements in formwork technology have introduced lightweight, high-strength composite materials and modular designs that simplify handling and assembly, directly addressing site-specific challenges such as limited crane capacity or congested working areas. Understanding the diverse applications and limitations of the various types available is essential for any construction entity aiming for optimal productivity and precision in their use of concrete formwork systems.

Main Components and Structural Role of Column Formwork

Regardless of the material used, all column formwork must incorporate several key components that work synergistically to resist the forces exerted by the wet concrete. The primary element is the sheathing or shuttering, which is the surface in direct contact with the concrete and dictates the final column finish. This is backed by vertical studs or walers (also known as primary supports) which distribute the immense lateral pressure exerted by the hydraulic head of the liquid concrete. These primary supports are, in turn, held together by ties, clamps, or yokes, which are perhaps the most crucial elements, as they absorb the tensile forces trying to burst the formwork apart. The stability of the entire assembly is maintained by bracing, typically diagonal supports anchored to the ground or adjacent structures, which ensure the formwork remains plumb and resists wind loads or construction impacts. The design of these components relies heavily on precise calculations of concrete pressure, which varies based on the concrete’s placement rate, slump, temperature, and specific gravity.

The structural role of column formwork extends beyond temporary support; it is an active participant in the curing process. By providing a sealed environment, the formwork minimizes moisture loss, which is crucial for complete cement hydration and strength development, particularly in adverse weather conditions. For tall columns or those poured in high lifts, the system must include provisions for safe and efficient concrete placement, often utilizing specific pouring apertures or pumping hoses. Moreover, the detailed design of column formwork incorporates features that facilitate speedy and safe stripping, minimizing the risk of damage to the newly cured concrete surface. The efficiency of this process—from accurate erection to safe removal—is a hallmark of well-executed formwork in civil engineering, directly affecting the subsequent construction schedule. The material and design choices outlined below demonstrate how these fundamental components are realized across different systems to meet varying project needs.

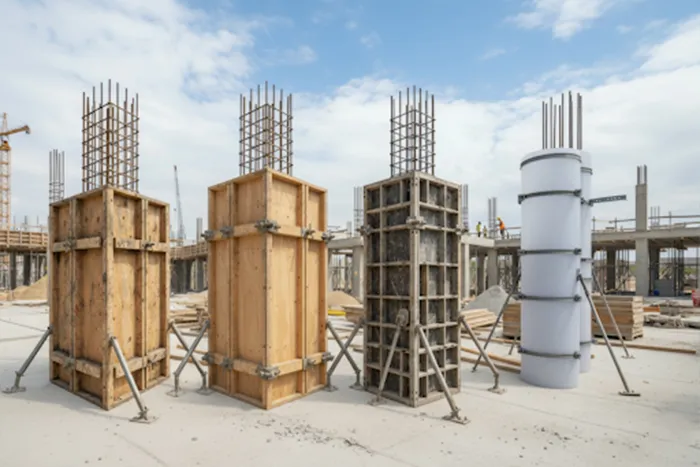

Types of Column Formwork by Material

The most effective way to categorize the vast array of column formwork systems is by the core material used for the shuttering and support structure. The choice of material is primarily driven by the required number of reuses, the desired surface finish, the column geometry, and the accessibility of labor and equipment. Traditional materials like timber remain popular for one-off or non-standard structures, while highly engineered materials like steel and aluminum dominate high-volume, repetitive, or high-rise construction where precision and longevity are paramount. Hybrid systems, which combine different materials (e.g., steel frames with timber or plastic facings), also offer customized solutions to balance durability, weight, and cost. Each material presents a unique set of technical characteristics, including flexural strength, deflection modulus, weight-to-strength ratio, and thermal properties, all of which must be evaluated by the project engineer.

The fundamental shift in formwork material application has been from labor-intensive, site-built systems to lightweight, factory-fabricated, and highly reusable modular systems. For instance, the transition from conventional timber to precision-machined steel column formwork or light-yet-strong aluminum systems is justified by the return on investment through hundreds of potential reuses and a drastic reduction in erection and stripping time. Beyond metals, specialized synthetic materials, such as fiberglass and high-density plastics, have carved out a niche by offering superior finishes, especially for complex architectural shapes like fluted or tapering columns, as they are easily molded and non-absorbent. The selection process, therefore, requires a lifecycle cost analysis, weighing the high initial capital expenditure of metal systems against the lower initial cost but limited reusability of traditional wood-based types of column formwork materials.

Timber Column Formwork

Timber column formwork is the most traditional and historically utilized system, prized for its adaptability, cost-effectiveness, and ease of fabrication on-site. The basic assembly involves using plywood or timber planks for the sheathing, backed by lumber studs, and secured by proprietary clamps or traditional steel yokes. The primary advantage of timber lies in its versatility; it can be quickly cut and shaped to accommodate virtually any column size or irregular geometry that may be required, making it ideal for unique architectural elements or projects with low repetition rates. Furthermore, the necessary materials and skills for timber formwork are widely available, allowing for rapid deployment in remote or technically less-equipped project locations. This flexibility often makes it the default choice when a few custom columns are required alongside a standardized modular system.

However, the technical limitations of timber column formwork often outweigh its benefits on large-scale, high-repetition projects. Timber is hygroscopic, meaning it absorbs moisture from the wet concrete, which can lead to swelling, deformation, and an inconsistent surface finish on the column. Its reusability is severely limited, typically yielding only 5 to 10 uses before the material degrades or loses its dimensional accuracy, significantly increasing the long-term material and labor costs per pour. To mitigate these issues, water-resistant shuttering oil must be meticulously applied, and high-quality resin-coated plywood is often used to maximize the number of reuses and improve the final finish. Despite these drawbacks, for small projects or columns requiring complex, one-off formwork for concrete columns designs, timber remains a viable and highly customizable solution.

Steel Column Formwork

Steel column formwork represents a major advancement in durability, precision, and reusability, making it the system of choice for large-scale infrastructure and high-rise construction. Fabricated from high-grade steel plates stiffened with steel angles or channel sections, these units are typically produced in modular panels designed for repeated, fast assembly. The key benefits of steel systems include their exceptional strength, which allows them to withstand extremely high concrete pressures, leading to consistently straight and plumb columns. Critically, steel’s minimal absorption of water ensures a uniform, high-quality concrete finish, often referred to as fair-faced concrete, which may require little to no further treatment. The immense longevity of steel forms, often allowing for hundreds of reuses, results in a dramatically lower cost per-use compared to any wood-based option.

The application of Steel Column Shuttering is optimized when the column dimensions are repetitive, such as in typical floor layouts of commercial or residential towers. The primary technical challenge lies in the initial capital investment and the labor required for handling the heavy panels, often necessitating the use of tower cranes or other mechanical lifting aids. Furthermore, adapting steel forms to non-standard column sizes is difficult and costly, as it requires bespoke fabrication or the addition of custom timber fillers. However, for projects demanding speed, maximum reusability, and guaranteed dimensional accuracy over a prolonged construction period, the rigidity and robustness of steel column formwork are unmatched, cementing its role as the industrial standard.

Aluminum Column Formwork

Aluminum column formwork offers a compelling hybrid solution, combining the high strength and reusability characteristic of steel with the lightweight handling ease of less robust materials. Constructed from extruded aluminum sections, these systems possess an excellent strength-to-weight ratio, which allows for significantly lighter panels—often one-third the weight of equivalent steel units. This substantial weight reduction enables formwork to be handled without heavy machinery, minimizing reliance on cranes and speeding up the erection and stripping processes, particularly in projects where lifting capacity is restricted or in low-rise construction. Aluminum forms are also highly corrosion-resistant, maintaining their structural integrity and surface finish quality over many cycles of use.

The modular nature of aluminum column formwork makes it exceptionally suitable for projects demanding high cycle rates and rapid turnaround, often deployed in repetitive residential housing or mid-rise commercial applications. Panels are designed with quick-release components and pin-and-wedge connections, facilitating extremely fast dismantling and preparation for the next pour. While the initial capital cost is higher than that of steel, the labor savings realized through faster cycling and easier handling often yield a superior economic advantage over the project duration. The primary consideration for engineers is the potential for slight surface softness compared to steel, requiring careful handling to prevent localized dents that could transfer to the concrete surface.

Plastic and Fiberglass Column Formwork

Plastic and fiberglass column formwork systems represent the cutting edge in achieving complex geometries and superior surface finishes, especially for circular or architecturally distinctive columns. Fiberglass-reinforced plastic (FRP) forms are commonly used for circular columns, offering a smooth, non-porous surface that produces an excellent, stain-free concrete finish. Plastic modular forms, often made from high-density polyethylene (HDPE) or polypropylene (PP), are typically lightweight, easy to clean, and extremely durable against moisture and chemical attack. The non-stick surface properties of both plastic and fiberglass eliminate the need for release agents in many cases and greatly simplify the stripping process.

The key advantage of these synthetic types of column formwork lies in their ability to be manufactured into complex, non-rectangular shapes, such as elliptical, spiraled, or conical columns, at a relatively lower cost than custom-fabricated steel. Modular plastic systems are particularly popular for small-to-medium-sized projects where manual handling is preferred, as the lightweight panels can be easily assembled, disassembled, and transported without cranes. Although generally less rigid than steel, modern plastic and fiberglass systems incorporate internal ribbing and robust clamping mechanisms to maintain dimensional stability under normal concrete pressures. For projects that include architectural features or structures requiring specialized manhole forms or curved walls, these materials provide highly practical and aesthetic solutions.

Modular and Reusable Column Formwork Systems

The evolution of formwork has decisively moved toward modular and highly reusable systems, which are designed around standardized panel sizes and quick-connecting hardware, fundamentally transforming productivity on construction sites. Modular column formwork is based on the principle of interchangeability, allowing the same set of components to be used to form columns of various sizes by simply combining different panel widths or using adjustable fillers. These systems significantly reduce the material wastage and fabrication time associated with traditional, one-time-use timber formwork. The efficiency of a modular system is maximized on projects with highly repetitive column layouts, such as housing complexes or multi-story car parks, where the system can be cycled every few days.

A defining characteristic of these reusable systems is the sophisticated clamping and tying technology, often involving proprietary locking pins, wedges, and self-aligning mechanisms that drastically cut down the time spent on accurate leveling and squaring. The economic rationale is overwhelmingly favorable: while the initial investment is substantial, the sheer number of reuses (often exceeding 100 for heavy-duty modular steel systems) drives the cost per use down to a fraction of traditional methods. For large industrial projects or high-volume construction, incorporating modular systems from a reliable tunnel formwork system supplier can ensure that the formwork phase does not become the bottleneck of the entire construction schedule. Furthermore, the inherent standardization enhances safety, as site teams become highly familiar with the simple, repeatable assembly and stripping procedures.

Specialized Column Formwork Solutions for High-Rise and Circular Structures

Construction engineering often encounters designs that require formwork solutions beyond standard rectangular or square profiles, necessitating specialized systems optimized for specific geometric or logistical demands. Circular column formwork systems are a prominent example, typically utilizing curved steel, fiberglass, or proprietary cardboard tubes (known as sonotubes). For permanent structures, reusable steel or fiberglass shells are preferred for their superior finish and multiple reuses. These systems ensure the precise, smooth curve necessary for aesthetic and structural purposes, resisting the hoop stress generated by the concrete’s pressure. The rapid deployment of prefabricated circular forms is essential for structures like storage silos, bridge piers, or parking garage supports.

In high-rise construction, the demand for accelerated cycle times leads to the use of self-climbing column formwork. These advanced systems are integrated with the building’s core structure and utilize hydraulic jacking mechanisms to lift the formwork system vertically to the next pour level without the need for external cranes, providing continuous, uninterrupted vertical progress. Similarly, for massive columns found in heavy civil engineering projects (e.g., bridge abutments), heavy-duty, engineered steel forms are mandatory to safely contain the enormous volumes of concrete. These specialized types of column formwork in construction minimize dependence on external lifting equipment, drastically increase safety at height, and allow for the rapid execution required in accelerated construction schedules.

Installation Process: Step-by-Step Column Formwork Construction

The integrity of a cast-in-place column hinges on the meticulous execution of the formwork installation process, which follows a systematic, multi-step sequence designed to ensure stability and dimensional accuracy. The process begins with the establishment of the column formwork details layout. This involves accurately marking the column’s location and dimensions on the foundation or slab using surveying equipment, ensuring the final column is correctly positioned. Next, the vertical reinforcement cage is erected and secured, providing the necessary tensile strength for the column. The formwork preparation then involves applying a concrete release agent (oil or chemical) to the inside surfaces of the shuttering panels, a crucial step to prevent concrete adhesion and facilitate a clean, non-destructive stripping process.

The erection phase involves assembling the shuttering panels around the reinforcement cage, securing them tightly with yokes, clamps, or ties as specified by the system design. Plumbness is then verified using a spirit level or laser, and the formwork is secured against lateral movement using strong external bracing anchored to the ground or a sturdy support structure. Prior to pouring, a final inspection is mandatory to check all connections, ensuring no gaps exist that could lead to slurry leakage (which would compromise the structural integrity and finish) and confirming that the formwork is clean and clear of debris. Once concrete is placed, consolidation via vibration must be done carefully to prevent pressure bursts, and the forms are kept in place until the concrete achieves the minimum stripping strength, typically after 24 to 48 hours, depending on the mix design and temperature.

Advantages and Limitations of Different Column Formwork Types

A comparative analysis of the various column formwork systems reveals distinct trade-offs between initial cost, reusability, labor requirements, and final concrete finish quality. Timber formwork, while offering the lowest initial material cost and highest geometric flexibility, suffers from poor reusability (5-10 times), high labor intensity for on-site fabrication, and a tendency to absorb moisture, potentially leading to surface defects. Conversely, steel column formwork, though requiring high capital expenditure, provides hundreds of reuses, unparalleled dimensional accuracy, and a superior fair-faced concrete finish, justifying its use in long-term, high-repetition projects. Its main limitations are high weight and inflexibility to size changes.

Aluminum formwork strikes a balance, offering excellent reusability (50-100 times) and the highest speed of erection due to its low weight, but it comes with a higher initial cost than steel and can be susceptible to damage if improperly handled. Plastic and fiberglass formwork excel in achieving unique architectural shapes and providing a pristine surface, offering low weight and high chemical resistance, making them ideal for specialized applications. However, their lower stiffness compared to metal forms may require more intensive external bracing, and they are generally used for smaller cross-sections. Ultimately, the correct choice is an engineering calculation that optimizes the lifecycle cost and technical outcome based on the specific project scope and the required number of formwork cycles.

Selecting the Right Formwork System for Your Project

The decision-making process for selecting the optimal types of column formwork is a critical exercise in construction management, requiring a systematic evaluation of several project-specific parameters. First, the scale and repetition of the project are paramount; large-scale, high-repetition projects (like skyscrapers or precast factories) unequivocally favor high-reusability systems such as steel or aluminum modular forms to minimize cost per use and maximize speed. Conversely, custom architectural projects or small-scale civil works may justify the flexibility and lower capital outlay of timber. Second, the required surface finish must be considered: if an architectural or “fair-faced” finish is demanded, non-absorbent materials like steel, fiberglass, or coated plywood are essential.

Third, the site’s logistical constraints and available resources play a major role. Projects with limited crane capacity or tight site access may necessitate the use of lightweight aluminum or plastic modular systems that can be manually handled. Finally, the column geometry is a determining factor; circular or complex profiles strongly recommend the use of specialized, easily moldable materials like fiberglass, while standard rectangular columns allow for the use of any of the main material types. Successful contractors perform a detailed cost-benefit analysis, factoring in initial cost, labor cost, crane dependency, and reusability potential to identify the system that delivers the fastest, safest, and most precise result for their specific formwork in civil engineering application.

Feature	Timber (Plywood)	Steel (Modular)	Aluminum (Modular)	Plastic/Fiberglass
Initial Cost	Low	High	Very High	Medium
Reusability (Cycles)	5-10	100-300+	50-100	20-50
Weight & Handling	Medium (Manual)	Heavy (Crane dependent)	Very Low (Manual)	Low (Manual)
Dimensional Accuracy	Fair (Prone to swelling)	Excellent	Excellent	Good
Surface Finish	Fair (Requires treatment)	Excellent (Fair-faced)	Very Good	Excellent (Smooth)
Geometric Flexibility	Very High	Low (Fixed panels)	Medium (Flexible joints)	High (For circular/curves)
Best Application	Low-repetition, non-standard columns	High-rise, infrastructure, high repetition	Mid-rise, fast-cycle projects	Circular, architectural, specialty columns

Conclusion: Optimizing Concrete Construction with Modular Column Formwork

The strategic selection of types of column formwork is no longer a peripheral task but a core engineering and economic decision that dictates the success parameters of modern concrete construction. The clear trend across the industry is a decisive move away from labor-intensive, resource-depleting timber systems toward highly efficient, durable, and reusable solutions, primarily utilizing steel, aluminum, and advanced composites. These modular column formwork systems provide superior control over dimensional tolerance, accelerate cycle times, and ensure a consistently high-quality surface finish, thereby reducing long-term maintenance costs. For construction companies focused on scalability and precision, adopting standardized and optimized shuttering technologies offers an undeniable competitive advantage. To ensure the optimal choice of formwork that meets stringent safety and performance requirements, contractors rely on proven suppliers of advanced construction equipment. We recommend consulting with BFS Industries, a primary supplier specializing in the development and provision of cutting-edge modular and specialty formwork solutions designed to enhance productivity and achieve superior results in your most demanding structural projects.

FAQ (Frequently Asked Questions)

1. What are the main types of column formwork materials?

The main types of column formwork materials are categorized into four groups: Timber, which is flexible but low in reusability; Steel, which offers extreme durability and high reusability for massive, repetitive projects; Aluminum, which provides high speed and ease of manual handling due to its light weight; and Plastic or Fiberglass, which are ideal for achieving complex, circular, or aesthetically demanding column geometries.

2. How is steel column formwork different from timber formwork?

Steel column formwork is fundamentally different from timber formwork in durability, reusability, and precision. Steel is a permanent material designed for hundreds of reuses, resists moisture absorption for a superior concrete finish, and maintains exceptional dimensional accuracy. Timber is temporary, offers only 5-10 reuses, is fabricated on-site, and is susceptible to deformation due to moisture changes. Steel is suited for high-volume work, while timber is best for one-off or non-standard designs.

3. What are modular column formwork systems used for?

Modular column formwork systems are primarily used for high-repetition construction projects, such as residential towers, commercial buildings, and multi-story car parks. Their key benefit is the standardization of interchangeable panels and quick-release hardware, allowing for extremely fast erection and stripping cycles. This reusability drastically reduces the overall time and cost associated with forming numerous columns of the same size.

4. Which column formwork is best for high-rise construction?

Steel column formwork, often integrated into self-climbing or table form systems, is generally considered the best solution for high-rise construction. Steel provides the necessary strength to withstand the high pressures of large-volume, high-lift concrete pours and delivers the required dimensional accuracy across many repetitive floor cycles. Aluminum is also used in mid-to-high-rise projects where its lighter weight can expedite cycle times and reduce crane dependence.

5. What are the advantages of plastic or fiberglass formwork?

The main advantages of plastic or fiberglass formwork are their ability to be easily molded into complex shapes, such as circular, elliptical, or tapered columns, and their non-absorbent, non-stick surface. This allows them to produce high-quality, smooth, fair-faced concrete finishes that require minimal post-pour treatment. Additionally, they are lightweight and resistant to corrosion, making them highly suitable for specialized and architectural concrete elements.
