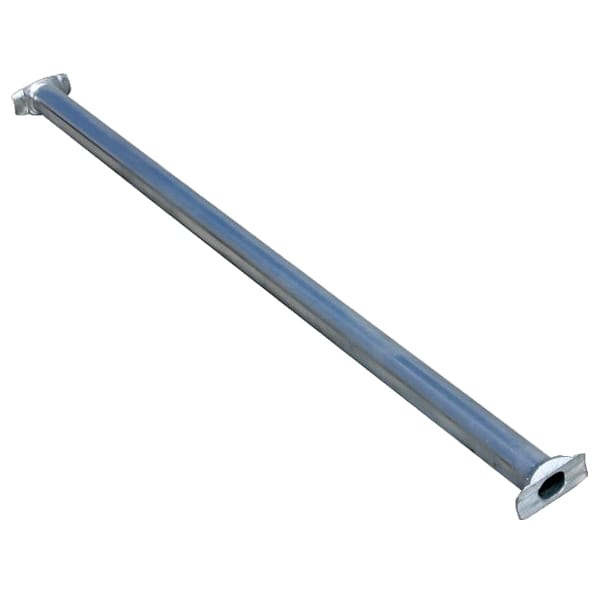

Cuplock Ledger: Design and Specifications

Introduction

The Cuplock Ledger is a critical horizontal component of the Cuplock scaffolding system, renowned for its strength, versatility, and ease of installation. Designed to connect vertical standards and provide structural support, ledgers ensure the stability and integrity of scaffolding structures used in construction, maintenance, and industrial projects. This article explores the properties, design features, and applications of the Cuplock Ledger, focusing on its material quality, forged ends, and size variations.

Material Properties

Cuplock Ledgers are manufactured using only the highest quality steel tubes, typically Q235 or Q345 carbon steel, depending on the manufacturer and regional standards. Q235 offers a yield strength of approximately 235 MPa, while Q345 provides a higher yield strength of around 345 MPa, ensuring excellent load-bearing capacity. These high-grade steel tubes are selected for their durability, resistance to deformation, and ability to withstand the dynamic loads encountered in scaffolding applications. The use of premium steel ensures that ledgers maintain structural integrity under heavy workloads and harsh environmental conditions.

Forged Ends Design

The ledgers feature identical forged ends designed to minimize projection and enhance safety. These forged ends, typically made from high-strength steel, are precision-engineered to fit securely into the cup joints of the Cuplock Scaffolding Standard. The forged ends are created through a hot-forging process, which ensures uniformity and strength, reducing the risk of failure during use. The minimal projection design serves several purposes:

• Prevents Damage: The reduced protrusion of the forged ends minimizes the risk of damage during transportation, handling, and assembly, extending the lifespan of the ledger.

• Enhances Safety: By eliminating sharp or protruding edges, the design reduces the likelihood of injury to workers and prevents snagging of materials or equipment.

• Improves Aesthetics and Functionality: The streamlined design ensures a clean, professional appearance and facilitates easier alignment during assembly.

The forged ends are securely welded to the steel tube, ensuring a robust connection that can withstand tensile and compressive forces in the scaffolding structure.

Size Variations

Cuplock Ledgers are available in a wide range of lengths to accommodate various scaffolding configurations and project requirements:

• 30 cm

• Up to 300 cm (3.0 m)

Common intermediate sizes include 60 cm, 90 cm, 120 cm, 180 cm, 240 cm, and 250 cm, though specific lengths may vary by manufacturer. These sizes correspond to standard bay widths in Cuplock scaffolding systems, allowing for flexibility in creating platforms, walkways, and support structures. The availability of multiple lengths ensures that the system can be tailored to fit specific project dimensions, whether for small-scale renovations or large-scale construction projects.

Surface Treatment

While not explicitly specified, Cuplock Ledgers are typically finished with hot-dip galvanizing or electro-galvanizing to enhance durability and corrosion resistance. Hot-dip galvanizing provides a thick zinc coating, ideal for outdoor and harsh environments, while electro-galvanizing offers a thinner coating suitable for less demanding conditions. These treatments protect the steel from rust and environmental degradation, ensuring a long service life and reducing maintenance costs.

Design and Functionality

The Cuplock Ledger is designed to integrate seamlessly with the Cuplock system’s node-point connection mechanism. Each forged end features a blade that slots into the bottom cup of the vertical standard, where it is secured by rotating the top cup and locking it in place, often with a hammer blow. This design offers several advantages:

• Rapid Assembly: The cup-locking mechanism allows up to four ledgers to be connected to a single node point in one action, significantly reducing erection time compared to traditional scaffolding systems.

• High Load Capacity: The combination of high-quality steel and forged ends ensures that ledgers can support substantial loads, making them suitable for heavy-duty applications like formwork support and shoring.

• Versatility: Ledgers can be used in various configurations, including straight runs, circular scaffolds, and complex geometries, making them adaptable to diverse project needs.

Applications

Cuplock Ledgers are used in a wide range of applications, including:

• Construction: Provide horizontal support for working platforms, formwork, and shoring in residential, commercial, and industrial projects.

• Civil Engineering: Support bridge construction, highway projects, and other infrastructure developments requiring robust scaffolding systems.

• Maintenance and Renovation: Facilitate access for facade work, painting, and repairs in confined or complex spaces.

• Industrial Projects: Used in shipbuilding, oil and gas, and power plant maintenance, where their durability and adaptability are critical.

Advantages

• Durability: High-quality steel and forged ends ensure long-term reliability and resistance to wear and tear.

• Safety: Minimal projection of forged ends reduces hazards, while the secure cup-locking system prevents accidental dislodgement.

• Efficiency: The design allows for quick assembly and disassembly, reducing labor costs and project timelines.

• Flexibility: Available in a wide range of lengths, ledgers can be customized to suit various scaffolding configurations.

Conclusion

The Cuplock Ledger, crafted from high-quality steel tubes with identical forged ends and available in sizes ranging from 30 cm to 300 cm, is an essential component of the Cuplock scaffolding system. Its robust material properties, damage-resistant design, and versatile length options make it a reliable choice for a wide range of construction and industrial applications. By combining strength, safety, and efficiency, the Cuplock Ledger contributes to the overall performance of the Cuplock system, ensuring safe and stable scaffolding solutions for projects worldwide.
